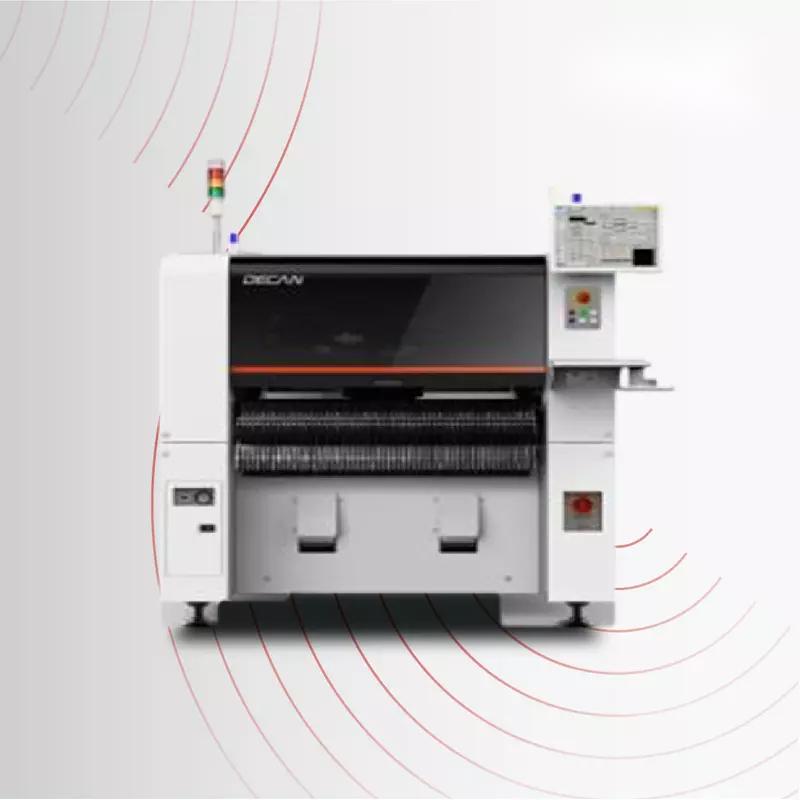

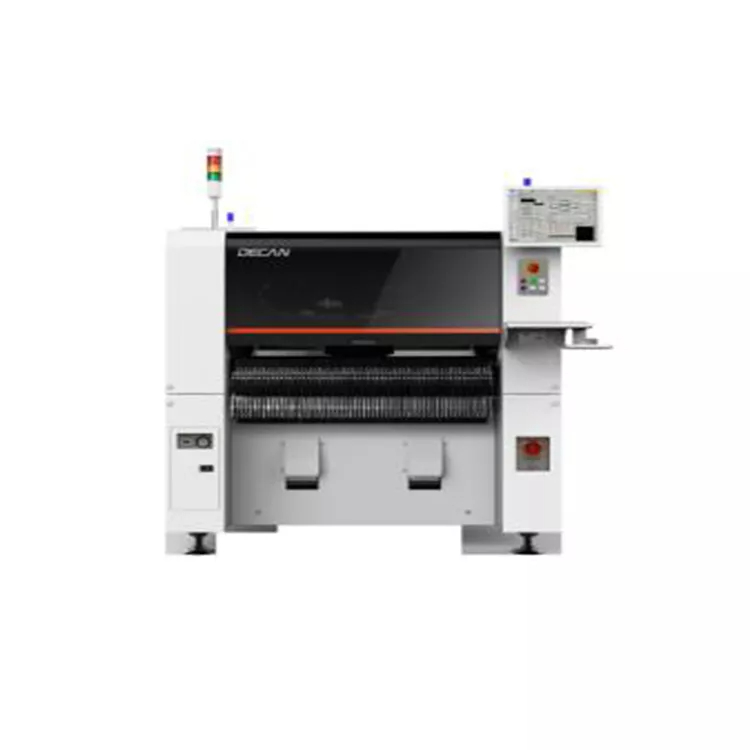

DECAN L2 | SAMSUNG Used Pcb Smt Machine Chip Mounter

Advanced Multi-Functional Placer

The Decan Line maximizes productivity in connection with the T-solution, an optimized software for integrated management, and introduces stable quality.

DECAN L2 is optimized for the placement of odd-type parts as well as LEDs and LED lenses

描述

SAMSUNG Used Pick and Place Machine

Advance chip mounter

Fast & flexible pick and place machine

Multi-functional SMT placement

Fast flexible pick & place machine

Used DECAN L2 Advanced Multi-Functional Placer

▶ Speed : 56,000 CPH (Optimum)
▶ Structure : 2 Gantry x 6 Spindles/Head
▶ Accuracy : ±40μm Cpk≥1.0 (0402 Chip)
±30μm Cpk≥1.0 (IC)
▶ Parts Size : 0402~□55mm, L75 (H25mm)
▶ PCB Size : L510xW460mm (Standard)
L1,200xW460mm (Option)
▶ Wide Part Handling Capability
▶ Various PCB Transfer Systems
▶ Verified Production History Management Solution
▶ High Speed Placement

Model	DECAN S2	DECAN F2	DECAN L2
Of Spindles	2 Gantryx10 Spidles/ Head	2 Gantryx10 Spidles/ Head	2 Gantryx6 Spidles/ Head
Placement Speed	92,000 CPH (Optimum)	80,000 CPH (Optimum)	56,000 CPH (Flying Vision,Optimum)
Vison	Flying Vision	Flying Vision Stage Vision (Optimun)
Placement Accuracy	±28μm Cpk≥1.0	±40μm Cpk≥1.0
Component Range	03015 ~ 12mm(H10mm)	0402(01005) ~ 16mm(H10mm)	0402(01005) ~ 21mm(H12mm)
PCB Size	50×40~510x460mm (standard) ~610x460mm(Option), ~740×460(Option) ~810x460mm(Option), ~1200×460(Option)
Conveyor Configurations	Standard : 1-2- 1 Option : 1-2-2/2-2-2/2-2-1/1-1-1 Factory Option : Single Conveyor (Jedec Tray 2ea)
Feeder Capacity	120ea (8mm)
Power	Voltage : 3 phase AC200/208/220/240/380/415V ±10% Frequency : 50/60Hz Power Consumption : Max. 5.0kVA
Air Consumption	50Nl/min
Weight	About 1,800kg
External Dimensions (mm)	1,430(L) x 1,740(D) x 1,485(H)
