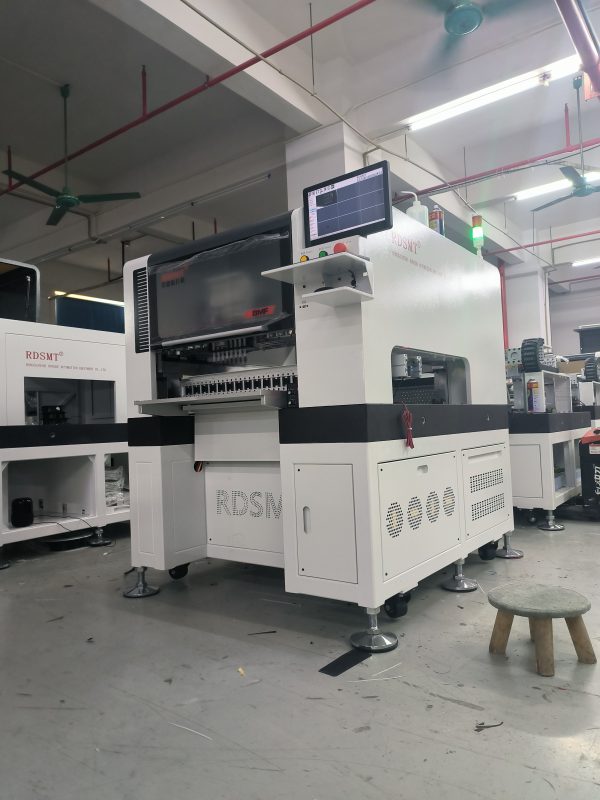

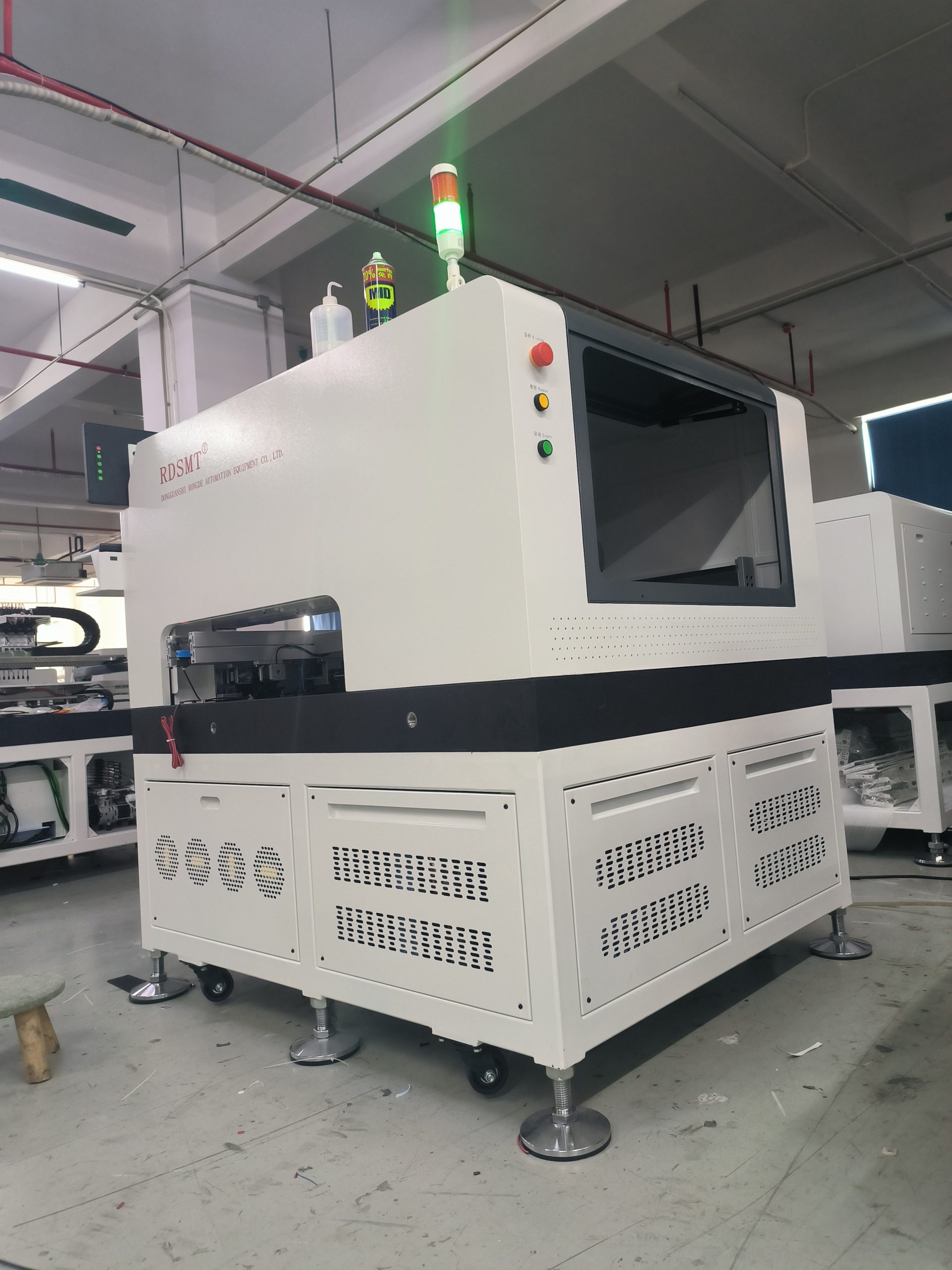

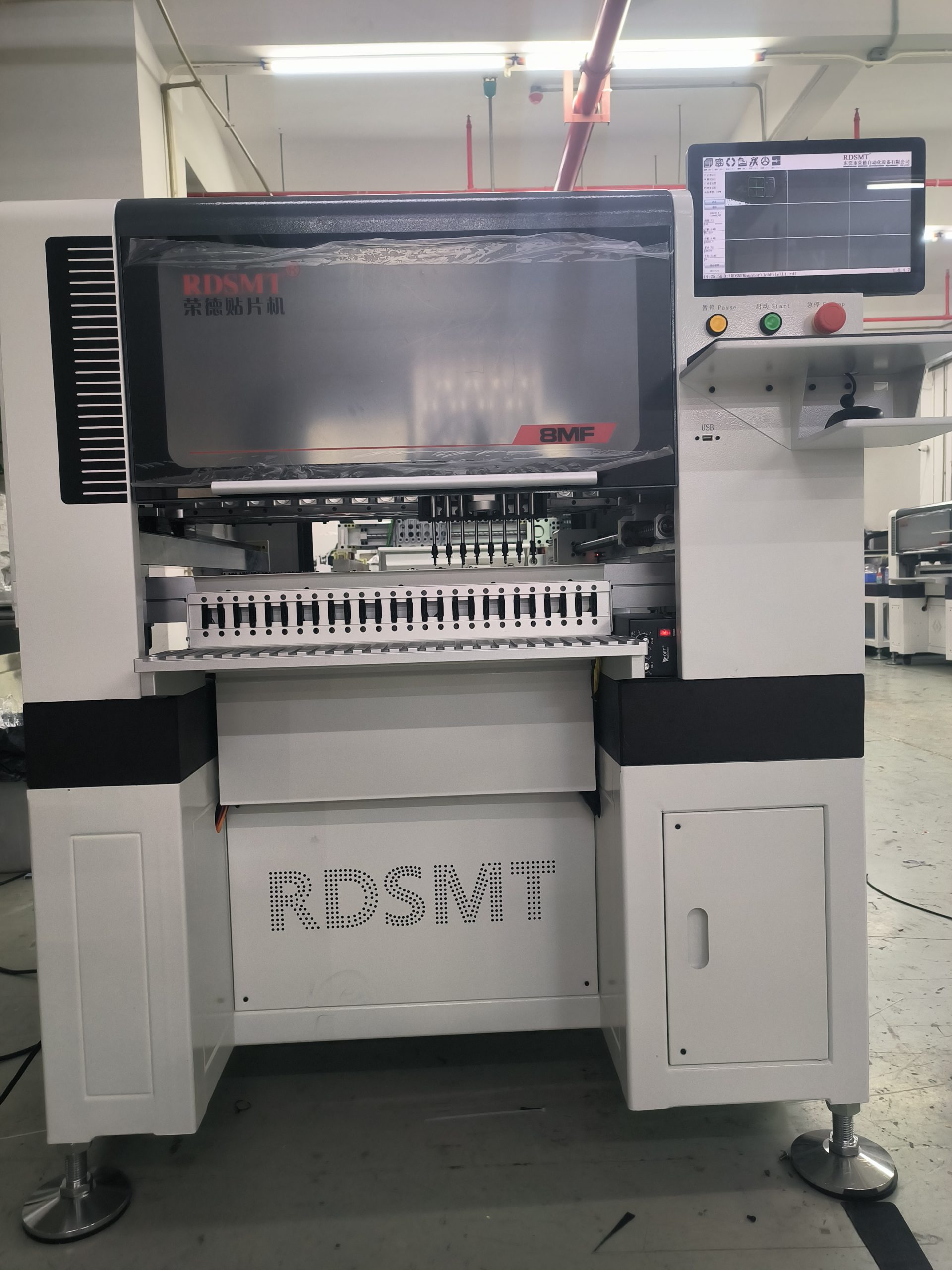

RD-8MF Multifunctional Pick & Place Machine.
Multifunctional Pick & Place Machine.
描述
-
High-speed flight vision system, 0 second recognition, improve production efficiency.
-
RDSMT unique mounting pressure control system, full closed-loop mount control system in Z-axis placement process to ensure the effective height and placement accuracy .
-
RDSMT exclusive image recognition system uses digital identification and equips with new industrial cameras.
-
Marble platform is adopted to improve the stability and efficiency of the machine.
-
Machine with vacuum pump, provide stable gas source, improve production quality.
-

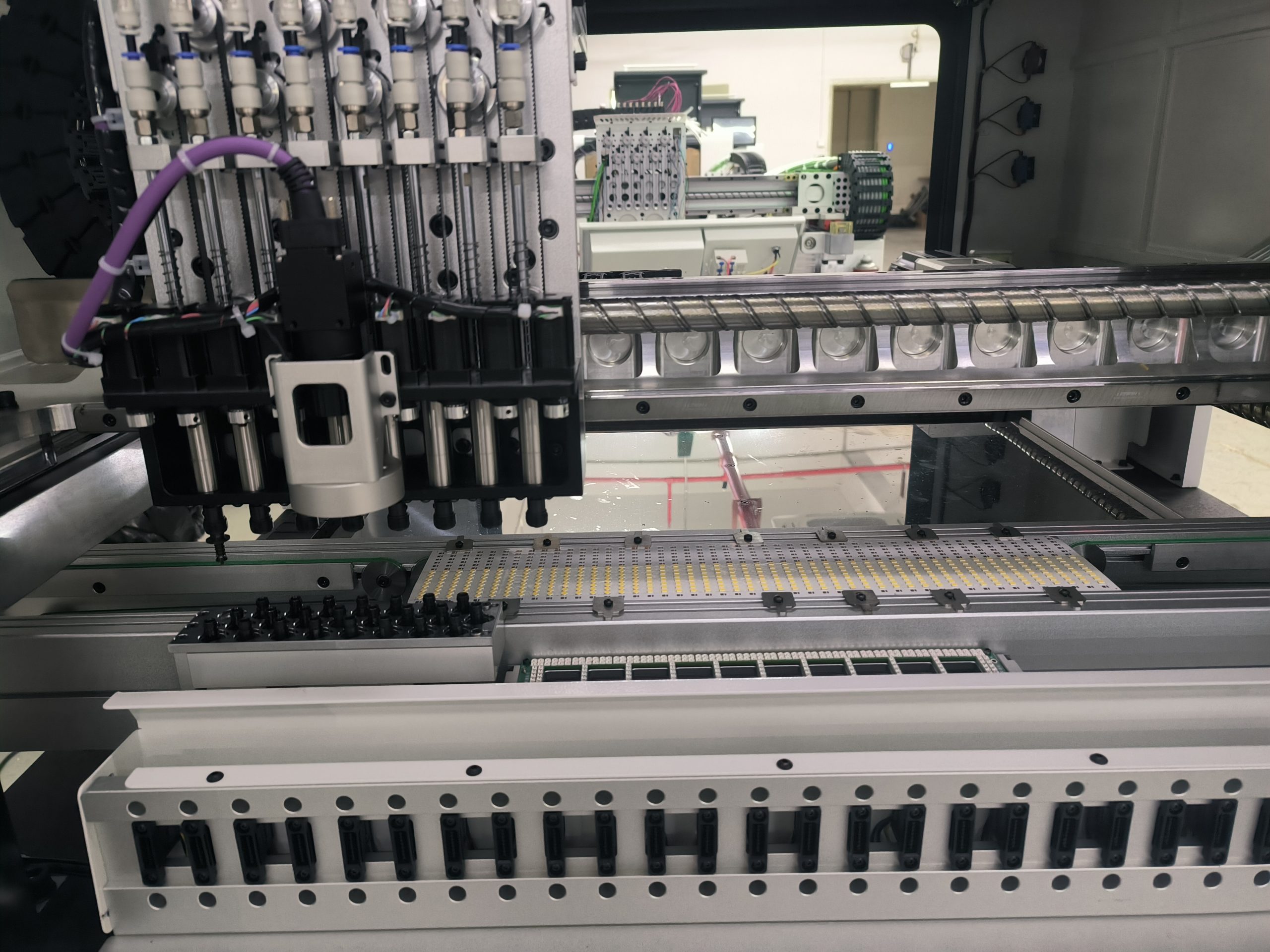

The first servo motor controlled independently arm with six heads to achieve,optimum placement speed and accuracy in china.
-
High precision hardware,imported top brands core parts to ensure placement precision,communication systems and so on.
-
Industrial-grade computer control and windows operating system.
-
Standard feeder with sensor to prevent components hip up to ensure safe operation.
-
X-Y-axis is driven by servo motors to ensure long-term stability and high accuracy of the machine.
- English operating system on the basis of imported placement machines to ensure the simplicity and convenience of the operator
* RDSMT keeps working on quality and performance, specifications and appearance may be updated without particular notice.
| Placement Speed | 20000/30000 chips/h | 20000/30000 chips/h |
| Feeder Station | 26 stations | 26 stations |
| Machine Weight | 1350kg | 1600kg |
| MAX PCB Size | 800mm × 500mm (segmented patch, each segment can be patched 400mm) | 1200mm×500mm (segmented patch, each segment can be patched 600mm) |
| MAX Component Height | 22MM | |
| Pallet material. | 1-3 Pallet | |
| Nozzle library | Automatic nozzle exchange library: 24 stations | |
| PCB transfer method | Three-stage track transmission | |
| Machine stem | Independently developed operating system | |
| Positioning method | Visual automatic MARK points | |
| Correction of suction’error by flying swatter | Each nozzle corresponds independently to a 1 megapixel flying camera for visual correction | |
| Programming method | Visual camera positioning programming/Excel format file coordinate import | |
| Input power/voltage | AC220V/50HZ (operating power approximately 2KW/H) | |
| Mountable components | 0402 or above lamp beads, resistors, capacitors, C terminals, electrolytics, inductors, diodes, etc. | |
