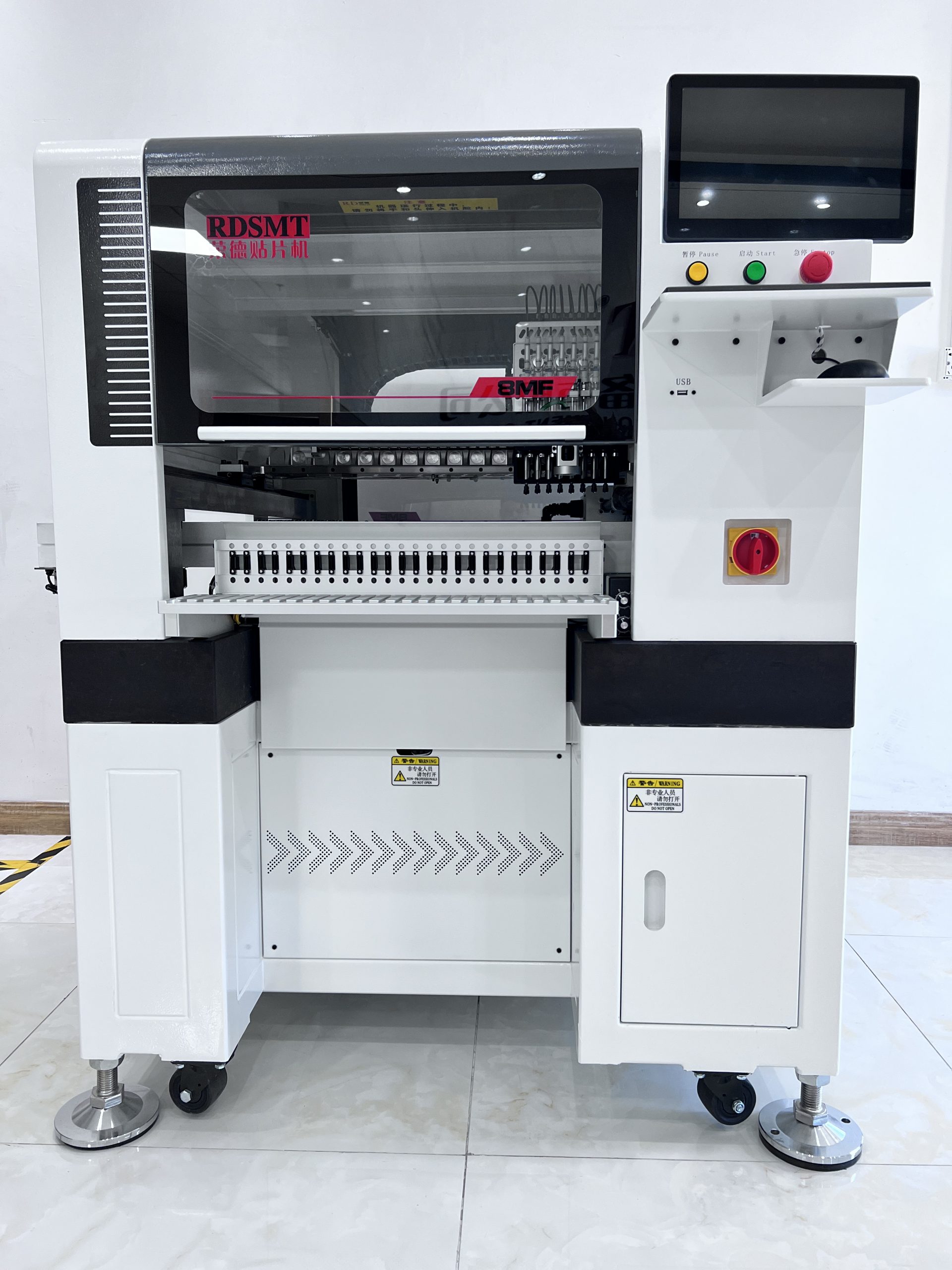

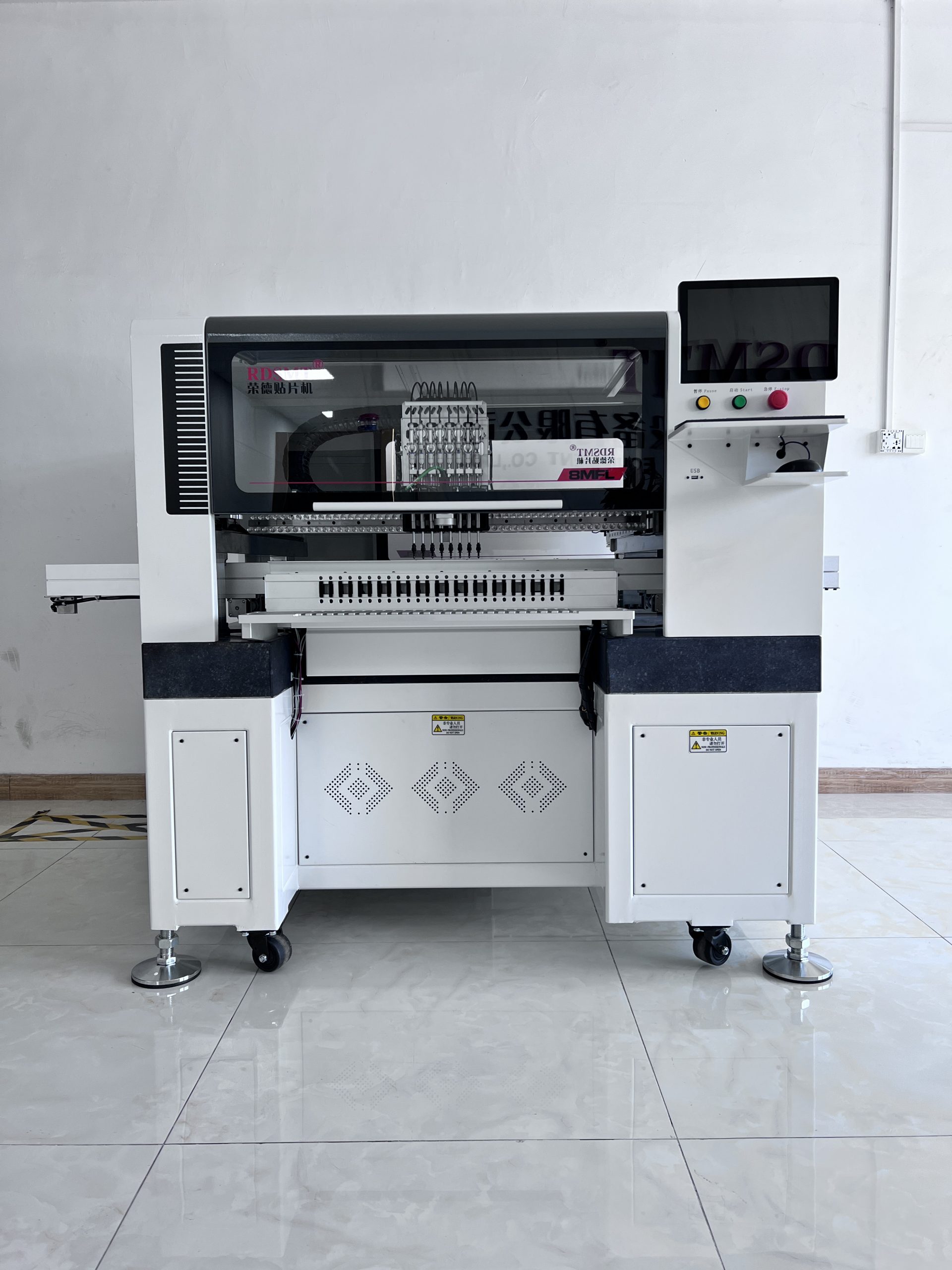

RD-ZT8VA Pick & Place Machine

描述

High-speed flight vision system, 0 second recognition, improve production efficiency.
RDSMT unique mounting pressure control system, full closed-loop mount control system in Z-axis placement process to ensure the effective height and placement accuracy .
RDSMT exclusive image recognition system uses digital identification and equips with new industrial cameras.
Marble platform is adopted to improve the stability and efficiency of the machine.
Machine with vacuum pump, provide stable gas source, improve production quality.
The first servo motor controlled independently arm with six heads to achieve,optimum placement speed and accuracy in china.
High precision hardware,imported top brands core parts to ensure placement precision,communication systems and so on.
Industrial-grade computer control and windows operating system.
Standard feeder with sensor to prevent components hip up to ensure safe operation.
X-Y-axis is driven by servo motors to ensure long-term stability and high accuracy of the machine.
English operating system on the basis of imported placement machines to ensure the simplicity and convenience of the operator

Specifications:

* RDSMT keeps working on quality and performance, specifications and appearance may be updated without particular notice.

Model	RD-ZT8VS	RD-ZT10VS
Placement Speed	50000 chips/h	60000 chips/h
Feeder Station	26 stations	26 stations
Machine Weight	1350 kg	1600 kg
MAX PCB Size	800mm × 500mm (segmented patch, each section can be pasted 400mm)/1200mm × 500mm (sectioned patch, each section can be pasted 600mm)
MAX Component Height	8MM
PCB transfer method	Three section track automatic transmission
Machine stem	Independently developed operating system
Positioning method	Visual automatic MARK points
Correction of suction’error by flying swatter	Each nozzle corresponds independently to a 1 megapixel flying camera for visual correction
Programming method	Visual camera positioning programming/Excel format file coordinate import
Input power/voltage	AC220V/50HZ (operating power approximately 2KW/H)
Mountable components	Beads, resistors, capacitors, ICs, terminals, diodes, etc. above 0603

FAQ

Q: What we can do for you?

A: Total SMT Machines and Solution, professional Technical Support and Service.

Q:Are you a trade company or a manufacturer?

A: OEM & ODM service are available.

Q: What is your delivery date?

A: The delivery date is about 35 days after receipt of payment.

Q: What is your payment terms?

A: 30% deposit in advance and 70% balance before shipment.

Q: What your main customers?

A: Huawei,Foxconn,Vtech,Sumida,Kemet,Vishay,Bosch,Canon.

Q: Why choose us?

A: Leading SMT Supplier in China; Trade assurance to USD 560,000+; Professional after-sales service team.
