SM482 Plus | Used SAMSUNG High Speed Smt Pcb Pick And Place Machine

Speed : 30,000CPH (Optimum)

Structure : 1 Gantry x 6 Spindles/Head

component range:0402(01005)

PCB Size : L460xW400

Product description: Hanwha SM482 Plus Pick and Place Machine, Speed : 30,000CPH (Optimum), Structure : 1 Gantry x 6 Spindles/Head, component range:0402(01005), PCB Size : L460xW400

描述

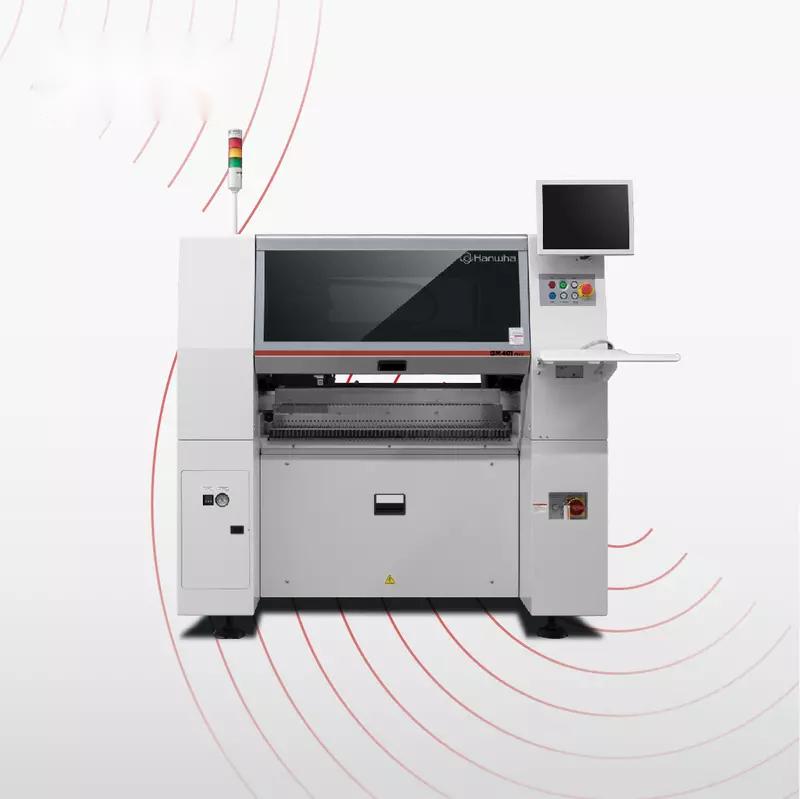

SAMSUNG SM482 Plus SMT Pick and Place Machine

1. Applicability to odd-shaped parts is reinforced.

2. Equipped with a head with one gantry and six spindles

3. Placement accuracy correction system(head offset,C/V offset etc.)

4. “Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays.”

5. “It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders.”

6. Placement Rate:30,000CPH(Optimum)

7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)

8. Option: 50(L)*40(W)~760(L)*460(W)

9. PCB Thickness:0.38mm~4.2mm

10. External Dimension(mm): 1650(L)*1680(D)*1530(H)

11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

SAMSUNG Used Pick and Place Machine

Advance chip mounter

Fast & flexible pick and place machine

Multi-functional SMT placement

Fast flexible pick & place machine

SMT pick and place machine

Model	SM471 Plus	SM481 Plus	SM482 Plus
Spindles	10 Spindles ×2 Gantry	10 Spindles ×1 Gantry	6 Spindles ×1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±40μm@μ±3σ	±40μm@μ±3σ	±40μm@μ±3σ
Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB	Max. 510(L) x 460(W)(Standard)	Max. 460(L) x 400(W)(Standard)	Max. 460(L) x 400(W)(Standard)
Applicable PCB	Max. 610(L) x 460(W)(Option)	Max. 1500(L) x 460(W)(Option	Max. 1200(L) x 510(W)(Option)
Dimension(mm)	1650×1690×1458	1650×1680×1530	1650×1680×1458
